Spoke nipples from WWS Drahtspeichen GmbH

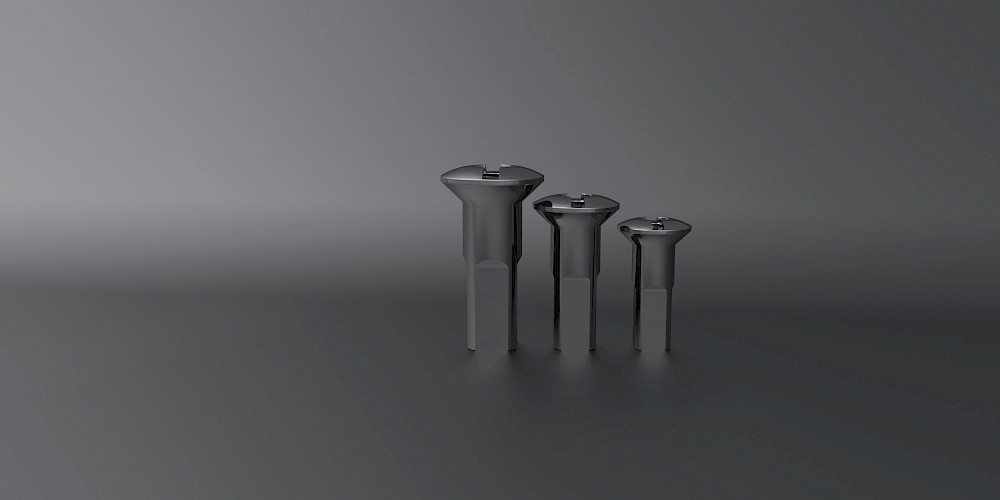

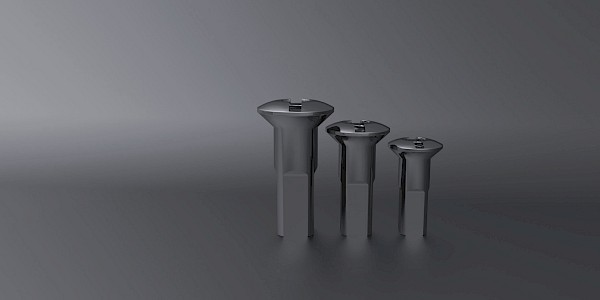

Spoke nipples
Available nipple sizes
M = brass S = steel N = inox
body shape in mm: dimensions of the stock x total length |
|||||||||||||
| thread | 4 x 11,7 | 4,9 x 13 | 4,9 x 14,5 | 5,5 x 15 | 6 x 16 | 6,4 x 18 | 7 x 20 | 7 x 23 | 7 x 25 | 7,6 x 21 | 7,6 x 23 | 8 x 21 | 8 x 25 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| square shaft | 3,2 | 4,1 | 4,1 | 4,5 | 5 | 5,5 | 6 | 6 | Torx | 6,3 | 6,3 | 6,8 | 6,8 |
| G 14 | M | ||||||||||||
| G 13 | M | ||||||||||||
| M 3 | M | M | M | M | |||||||||
| M 3,5 | M | M | M+S | ||||||||||
| M 4 | M+S | M+S | S+N | M+S | M+S | ||||||||
| G 9 | M+S | M+S | M+S | M+S | M+S | M+S | M+S | ||||||
| M 4,5 | M+S | M+S | M+S | M+S | M+S | M+S | |||||||
| G 8 | M+S | M+S | M+S | M+S | M+S | M+S | |||||||
| M 5 | M+S | M+S | M+S | M+S | |||||||||
| G 6 | M+S | M+S | |||||||||||
WWS sketching of spoke dimensioning
Brass nipples
Spoke nipples are available in brass for all sizes to DIN 74371 (Part 2). Surface electroplated with nickel, black zinc, chrome or black chrome. We guarantee optimum thread engagement. Special nipples with various body dimensions and/or threads are available.
Steel nipples
Spoke nipples to DIN 74371 (Part 2) > M 3.5 are available in steel as well – surface electroplated with zinc, zinc-nickel, black zinc, nickel, chrome and black chrome. We guarantee optimum thread engagement. Special nipples with various body dimensions and/or threads are available.
Steel nipples available in sizes:
- M4 / G9 / M4,5 / G8 / M5 / G6 (8,0 x 21 mm + 8,0 x 25mm)
- M4 / G9 / M4,5 / G8 (7,0 x 20 mm)
- M3,5 / M4 / G9 (6,4 x 18 mm)
Steel nipples zinc
Steel nipples nickel
Steel nipples chrome
Steel nipples black chrome
